ST-16PL-MAX Palletizer Robot

st16plmax.p1

Effective Load:

16kg

Motion Radius:

1900mm

Stacking Height:

2600mm

Stacking Speed:

MAX: 9pcs/min • MAX-G: 12pcs/min

Repeatability:

±0.04mm

Power Capacity:

3.2KVA

Robot Weight:

350kg

Communication Mode:

TCP/IP

Protection Rating:

IP54

Equipment Floor Area:

1510×1720mm

Operating Area:

3550×1720mm

Floor Height:

3200mm

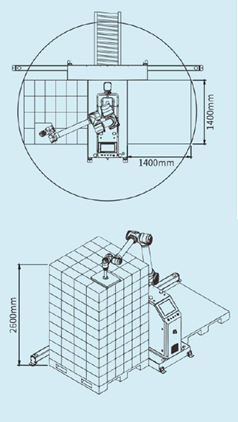

Detailed technical diagram showing dimensions and specifications

Applications

Versatile solutions for various industrial applications

High-speed automated palletizing operations for cases, bags, and boxes with 16kg payload capacity and exceptional throughput.

Efficient case packing and unpacking operations with 10-level collision detection for safe handling of various product sizes.

Automated depalletizing for incoming materials with integrated design requiring minimal footprint area.

Hygienic palletizing solutions for food processing with industrial-grade sensors and quick task configuration.

High-speed order fulfillment and packaging operations widely used across e-commerce and logistics industries.

End-of-line palletizing for pharmaceuticals, 3C, and daily chemistry manufacturing with proven versatility.

Experience the high-performance capabilities of the ST-16PL-MAX for your automated packaging operations requiring maximum efficiency.
